Submerged Contact Chambers
We have researched and determined the most effect ways to ensure ProMoss™ is maximally exposed to your system’s water no matter what the configuration. Place a contact chamber in a basin or other reservoir of moving water. Alternatively, you can plumb in one of our patented contact chambers to any system (with an operating temperature of 120 F or less) in a side stream fashion with 10-20 gpm flow and achieve the same excellent results. Hot water (above 120 F) systems can also be accommodated with specific off the shelf or custom contact chambers. Do you have a pot feeder already installed? Follow our instructions and it can be used for ProMoss™ as well. See several of your contact chamber options below. Contact us for more details or see our Product Specifications/Manuals. ProMoss™ is broken up within the strainer bag, loaded into the contact chamber, and lowered into the surge tank. The existing circulation in the body of water works with ProMoss™ to replicate the effects of an actual bog, and deliver its benefits throughout the system.
CC-ITL
The CC-ITL holds up to (8) bags of either ProMoss™ 3 or ProMoss™ 2.
Sizing and Key Attributes:
- 37” x 13” x 19” (HWD)
- 94cm x 33.02cm x 48.26cm (HWD)
- Standard rope length: ~5 ft (1.5 m)
- Weighs approximately 140 lbs. when filled to capacity and wet (before letting ProMoss™ drain)
- No plumbing required
- Accommodates up to 8 bags of ProMoss™ 3 or ProMoss™ 2
- Utilizes standard surge tank functionality and geometry to help treat entire system
- Easily accessed and maintained
CC-ITM
The CC-ITM can be used independently, or in conjunction with the CC-ITL. It is approximately half the size of its big brother.
When using the CC-ITM, ProMoss™ is applied in exactly the same manner as the CC-ITL.
The CC-ITM holds up to (4) bags of either ProMoss™ 3 or ProMoss™ 2.
- 5” x 12.5” x 18” (HWD)
- 53cm x 31.75cm x 45.72cm (HWD)
- Standard rope length: ~5 ft (1.5 m)
- Weighs approximately 70 lbs. when filled to capacity and wet (before letting ProMoss™ drain)
- No plumbing required
- Accommodates up to 4 bags of ProMoss™ 3 or ProMoss™ 2.
- Utilizes standard surge tank functionality and geometry to help treat entire system.
- Easily accessed and maintained

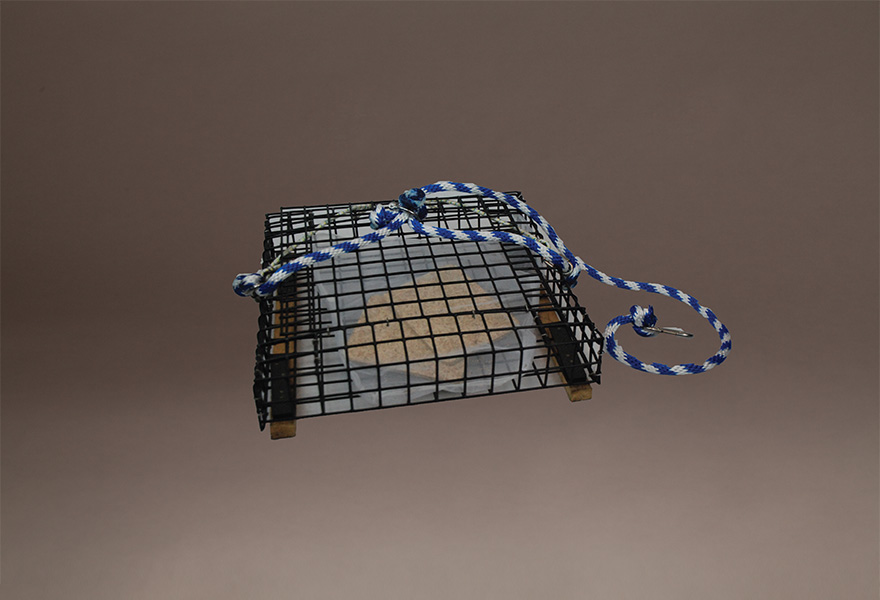

CC-ITS
The CC-ITS is used in small cooling towers, evaporative chillers, fountains and decorative ponds.
Sizing and Key Attributes:
- 3.5” x 18.5” x 18.5” (HWD)
- 9 cm x 47 cm x 47 cm (HWD)
- Capacity: up to 1 ProMoss™ 3
- Standard rope length: ~5 ft (1.5 m)
- wooden runners are no longer included
- product is constructed of vinyl coated wire

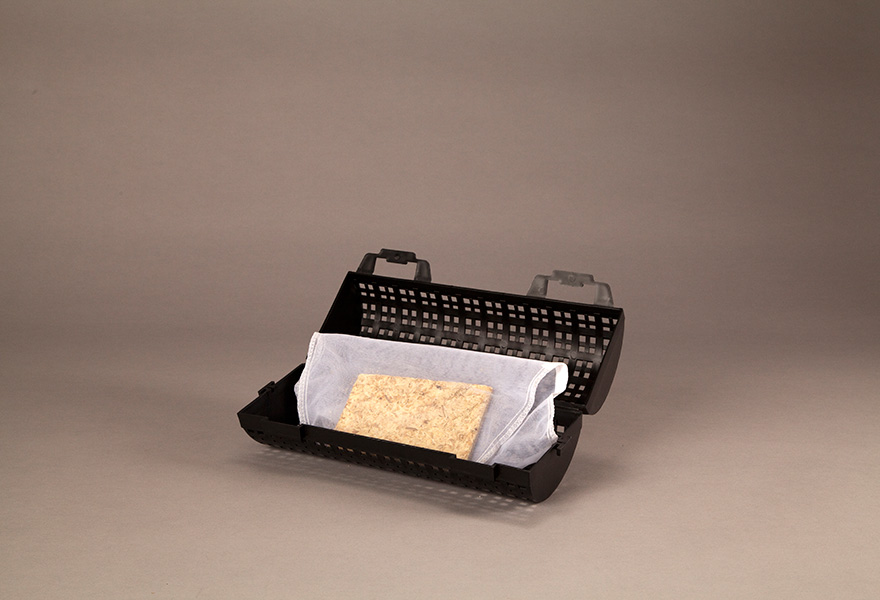

CC-F
The CC-F is used in very small cooling towers, fountains and decorative ponds.
Sizing and Key Attributes:
- Chamber diameter: 4.25”
- Chamber length: 12.5”
- Accommodates up to 1 ProMoss™ 0.5
Off-Line Contact Chambers
CC-I80, I90, I140 and I150
The CC-I80, I90, I140 and I150 are patented, off-line chambers that provide greater ease of use with ProMoss™. They are easily plumbed into the existing system using a bypass (sidestream) method. Creating a unique tumbling action within the chamber, off-line chambers hold from 3 to 16 ProMoss™ 3 or ProMoss™ 2, and maximize leaf-water interaction and allow the full effect of ProMoss™ treatment to be delivered throughout the system.
CC-I80

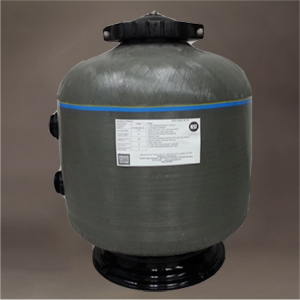

CC-I90

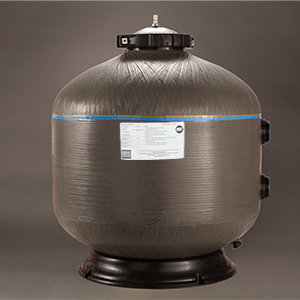

CC-I140

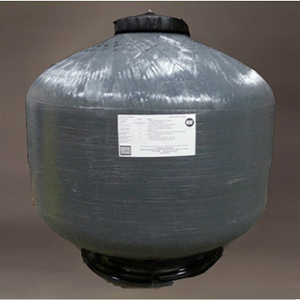

CC-I150
CC-BS and CC-BL
For small steam generators and other hot water systems, these high temperature contact chambers can be used with ProMoss™ 4 and ProMoss™ 6.

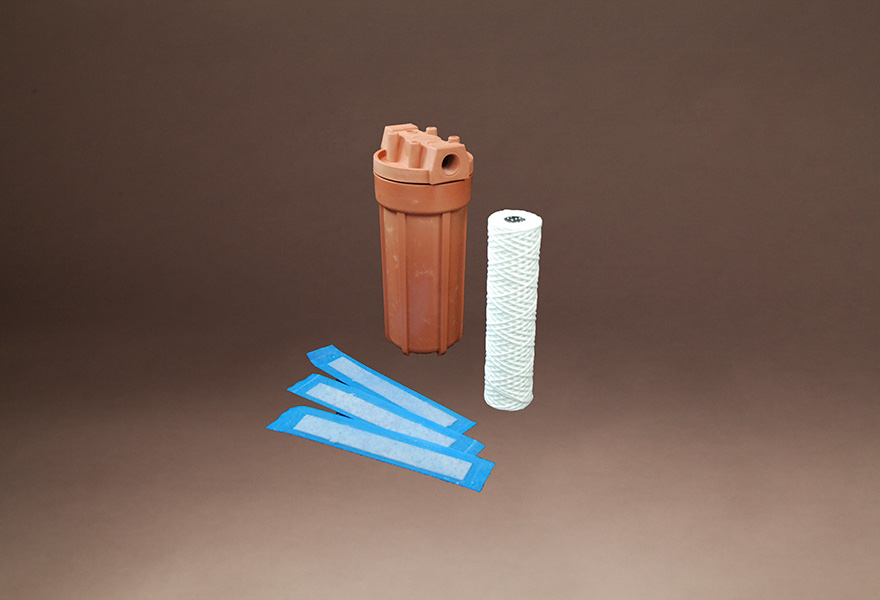

CC-BS

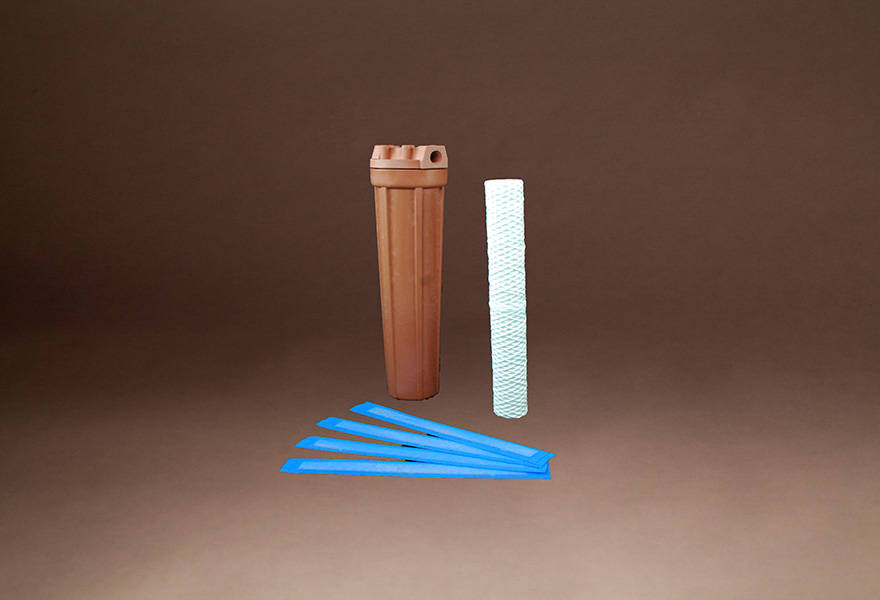

CC-BL
